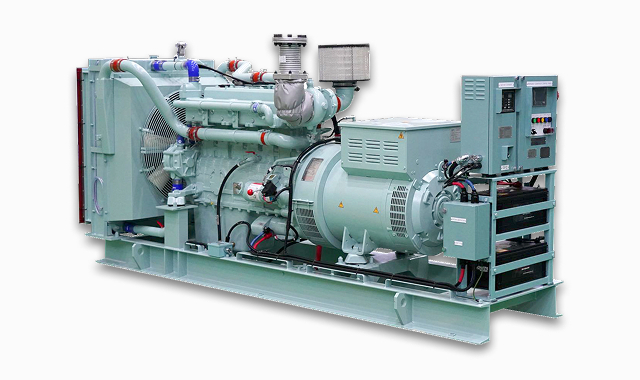

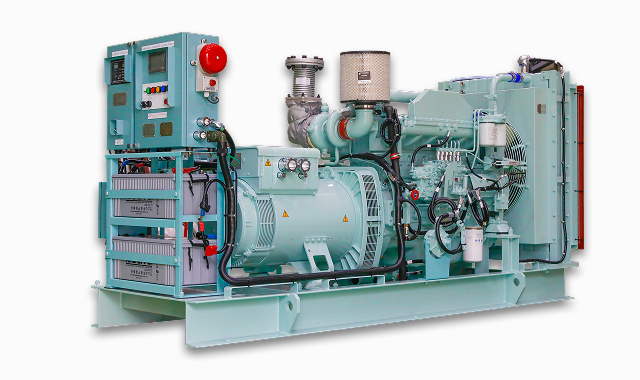

Marine Emergency Generator
The power to maintain safety even in emergency situations

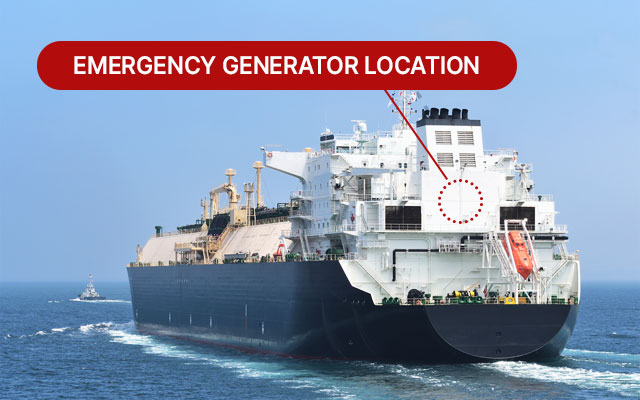

The emergency generator is a critical piece of safety equipment for protecting the crew and vessel in harsh maritime environments. In the event of a main power failure or other emergency, it must start automatically within 45 seconds to reliably power essential systems such as navigation, communication, and fire pumps in compliance with classification society requirements.
Features
- Automatic Start-upUpon a main power source failure, Power is automatically restored within 45 seconds to secure critical systems.
- Secondary Starting System A secondary manual starting system is required to enable start-up during a black-out(Dead ship condition).
- High Durability & Endurance Built to resist the most demanding maritime conditions(Saltwater, Moisture, Vibrations) and proven to operate continuously for 18 hours, meeting the requirements of the classification society.
Product lineup and options
Custom design and supply of the optimal power output for any type of vessel.
Emergency Generator Powered by
| Engine Maker | Electric Power Output [kW] | MIN | MAX | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ~250 | 500 | 750 | 1,000 | 1,250 | 1,500 | 1,750 | 2,000 | [kW] | [kW] | |
| HD Construction Equipment | 80 | 500 | ||||||||
| Weichai | 40 | 320 | ||||||||
| Baudouin | 350 | 1,000 | ||||||||
| Mitsubishi | 500 | 1,550 | ||||||||
| MTU | 1,300 | 2,000 | ||||||||
Secondary Starting System of Emergency Generator Output
Maker’s Standard
Maker’s Option
| kW | 30~80 | 100~165 | 180~270 | 300~760 | 800~ |
|---|---|---|---|---|---|
| Battery | |||||
| Spring | |||||
| Hydraulic | |||||
| Air |

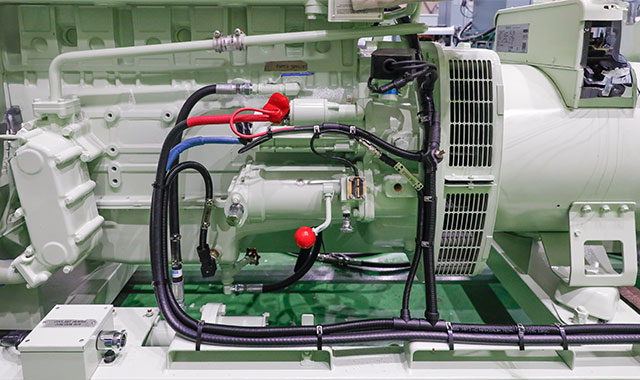

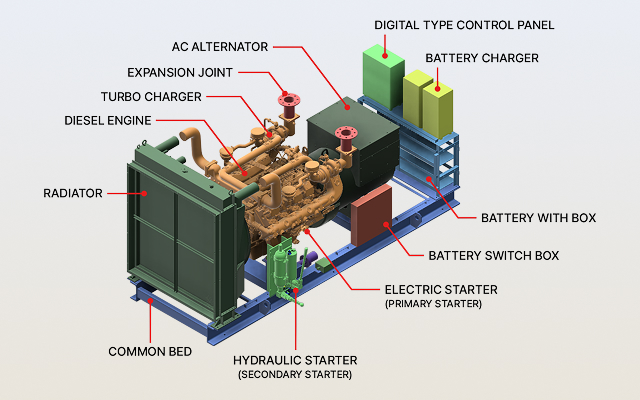

- Primary Starting Method: Electric Battery System (By Automatic Starting)
- Secondary Starting Method: As the Option

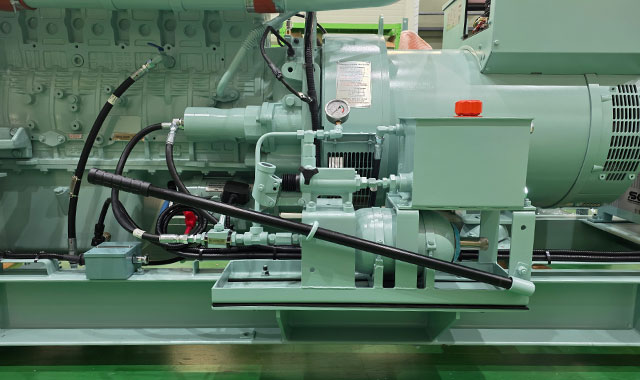

Spring Starter

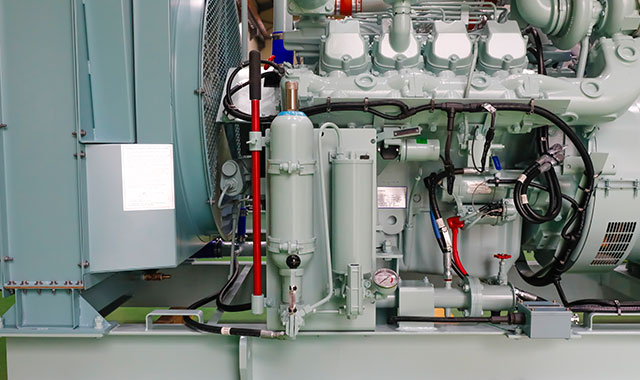

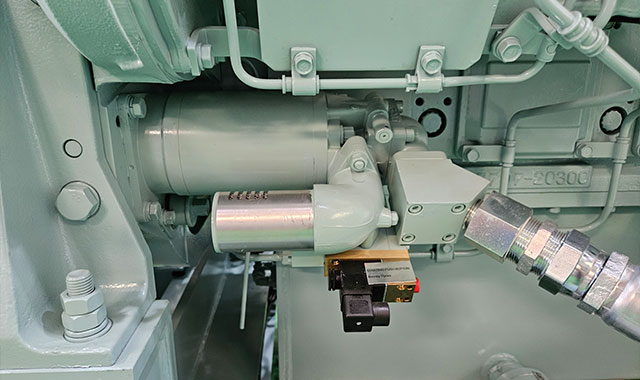

Hydraulic Starter
Hydraulic Starter
Compressed Air Starter
