Gen-set
Ratings
(kW)
Diesel Engine Dimension
L x W x H
Weight
Model Output
(kW)
200 ~ 264 D2866 LXE20 313 2,900×1,050×1,600 mm 2,800 kg
265 ~ 290 D2866 LE201 322 3,000×1,100×1,600 mm 2,900 kg
291 ~ 365 D2876 LE201 405 3,100×1,100×1,600 mm 3,200 kg
366 ~ 465 D2840 LE201 515 3,500×1,400×1,700 mm 4,300 kg
466 ~ 575 D2842 LE201 620 3,900×1,400×1,700 mm 4,700 kg
  ▪ 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F”

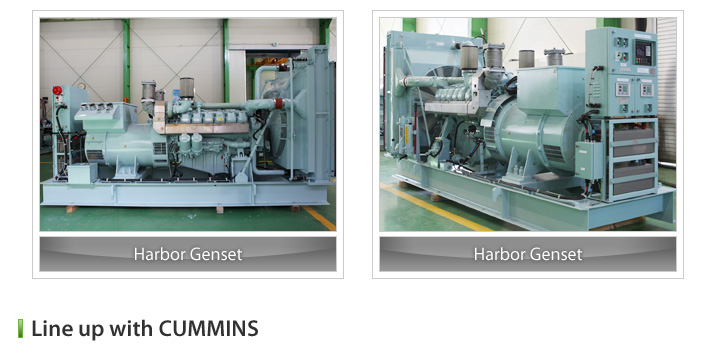

▪ Harbour Generator Set : NOx Certificate (IMO2, TIER-II)

Gen-set
Ratings
(kW)
Diesel Engine Dimension
L x W x H
Weight
Model Output
(kW)
550 ~ 650 KTA38DM1 776 5,200×1,850×2,650 mm 8,000 kg
700 QSK38DM 835 5,800×1,850×2,650 mm 8,500 kg
900 KTA50DM1 1,032 6,000×1,850×2,650 mm 11,500 kg
950 QSK50DM 1,074 7,000×2,500×2,950 mm 14,800 kg
~ 1,350 QSK60DM 1,519 7,200×2,500×2,950 mm 17,000 kg
  ▪ 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F”
▪ Harbour Generator Set : NOx Certificated (IMO2, TIER-II)
